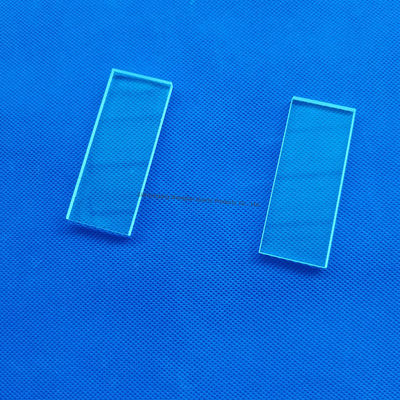

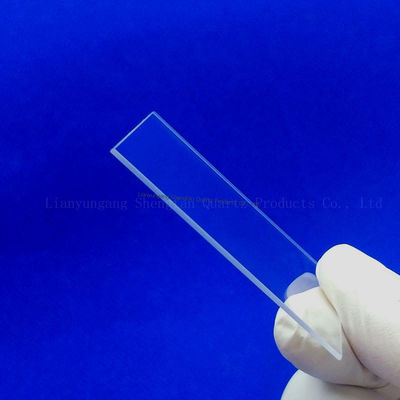

JGS2 hoog lichtdoorlaatbaarheid vierkant rechthoekig venster gesmolten kwarts
Productdetails
| Name: | High Temperature Quartz Glass Plate | Type: | Clear Quartz Plate |
|---|---|---|---|
| Application: | Semiconductor, optical | Thickness: | 0.5-100mm |
| Shape: | Square | Processing Service: | Bending, Welding, Punching, Cutting, polishing |
| Product Name: | quartz plate | Material: | SIO2>99.99% |
| Surface quality: | 60/40 | Density: | 2.2g/cm3 |
| Working Temparature: | 1150℃ | Hardness: | Morse 6.5 |
| Melt Point: | 1750-1850℃ | Acid tolerance: | 30 times than Ceramics,150 times than stainless steel |
| Size: | Customized | Annealing point: | 1180℃ |
| Port: | shanghai and Qindao port | ||
| Markeren |
met een hoog lichtdoorlaatvermogen gesmolten kwarts,vierkante rechthoekige venster met gesmolten kwarts,JGS2-gesmolten kwarts |
||
Productbeschrijving
|
Kenmerken van Shengfan kwartsplaten
|
|
|
|
*merk
|
Shengfanquartz |
|
|
*SIO2
|
99.99%
|
|
|
*Dichtheid
|
2.2 ((g/cm3)
|
|
|
*Hardheidsgraad op schaal moh
|
6.6
|
|
|
* Smeltpunt
|
1732°C
|
|
|
* Werktemperatuur
|
1100°C
|
|
|
*Aanbrengpunt
|
1180°C
|
|
|
* Verzachtingspunt
|
1630°C
|
|
1Translucent kwartsglas dikte 0,3-30 mm, OD: 1-500 mm
2- Dikte Tolerantie: +/- 0,1 mm
3Grondstof: kwarts, SiO2: >=99,99%
4Kleur: helder, doorschijnend.
5. oppervlakkegehalte: 40/20 60/40
6Overdraagbaarheid > 90%
7.S harp: Vierkant, cirkel, kan de grootte en vorm te maken volgens de klant vereist.
|
Tolerantie
|
±0.01
|
± 0,05 mm
|
±0,1 mm
|
|
Oppervlaktebehandeling
|
60/40
|
40/20
|
|
|
Vorm
|
vierkant en cirkel
|
aangepaste vorm
|
elke vorm kan worden aangepast
|
|
Toepassingsgeval
|
Afstandsbediening venster
|
vacuümbeker
|
ziekteverdelgende lamp
|
